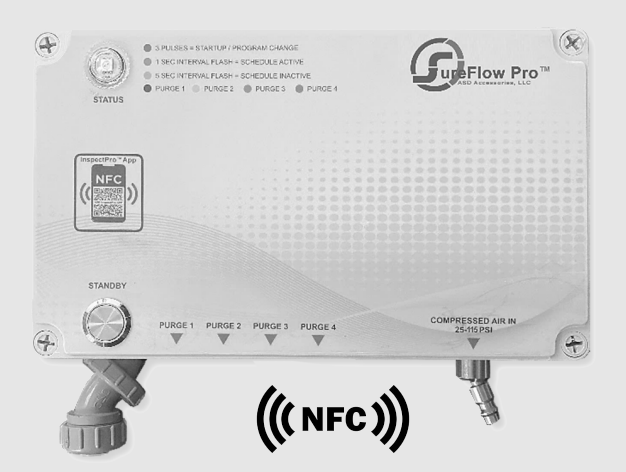

SureFlow Pro™ (4-Port Controller)
Login to view prices
Part Number: SFP-04-24V

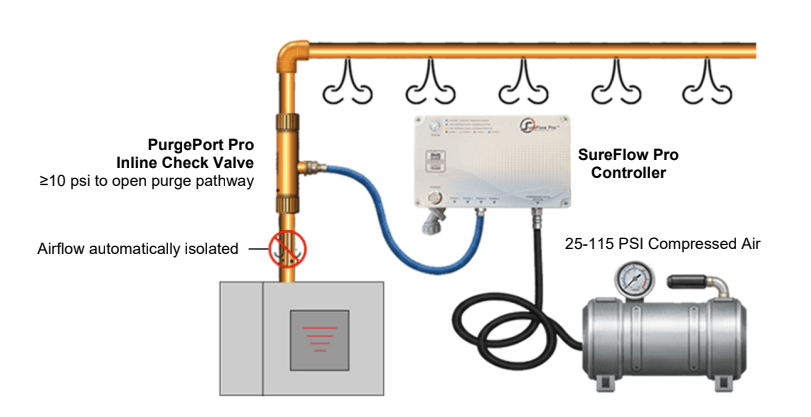

SureFlow Pro™ is an industrial-grade automatic purge controller engineered to maintain peak performance in aspirating smoke detection (ASD) systems. Purpose-built for critical environments, it delivers intelligent, scheduled purging to preserve detector sensitivity, extend filter and sensor life, and minimize maintenance costs. With an IP67-rated enclosure, NFC smart-chip technology for contactless programming and data logging via the ASD InspectPro™ App, and seamless integration with ASD networks, SureFlow Pro™ provides reliable, fully automated purging, especially when paired with the PurgePort Pro™ inline valve, eliminating manual intervention, solenoids, and failure points.
Features:
- Two versions: 1-Port or 4-Port
- Industrial-grade IP67 housing
- Contactless NFC programming via ASD InspectPro App
- Multi-function Status LED
- Supervised standby mode push-button (jumper disable option)
- Supervised standby mode input
- Supervised relay output for fault, standby, or power loss
- Reverse polarity, surge, and EMI/RF protection
- Integrated silencer for quiet purge operation
- Made in the USA and backed by a 2-year warranty
| Models |
SFP-01-24V (Single-Port Controller) SFP-04-24V (Four-Port Controller) |
|---|---|
| Power |
Voltage: 22–26 VDC Current: 30mA Standby, 250mA (Purge) |
| Housing |
IP Rating: IP67 (IEC 60529) Material: rustproof ABS Qualifications: CE |
| Dimensions & Weight |
Single-Port: 7.50 × 6 × 4 in. | 2.30 lbs Four-Port: 9.50 × 6 × 4 in. | 3.25 lbs |
| Supervision |
Normally Open Relay, 2A/30 VDC Opens on fault, power loss, or standby |
| Programming | Contactless NFC via InspectPro™ App (Android/iOS) |
| Display |
Onboard: RGB Status LED Offboard: App display of all parameters |
| Scheduler |
Cycle: day, hour, minute, second Purge duration: minute, second |
| Controls |
Supervised Standby Stainless Push Button (jumper disable) Standby input (0V) |
| Couplers |
Air In: ¼” Industrial Air Fitting Purge Out: 3/8 in. tube push-to-connect |
| Compressed Air |
25–115 PSI Requirement: Oil-free, ISO 8573-1:2010 Class 1.4.1 |
| Compatibility | Suitable for all Aspirating Smoke Detection (ASD) systems |
| Resources |
|---|
| > SureFlow Pro SFP-04-24V & SFP-01-24v Datasheet |
| Related Accessories & Options |
|---|
| > SFP-01-24V SureFlow Pro |
Technologies enhancing performance, usability and cost of Air Sampling Smoke Detection Systems
