Part Number: CLN-T-34

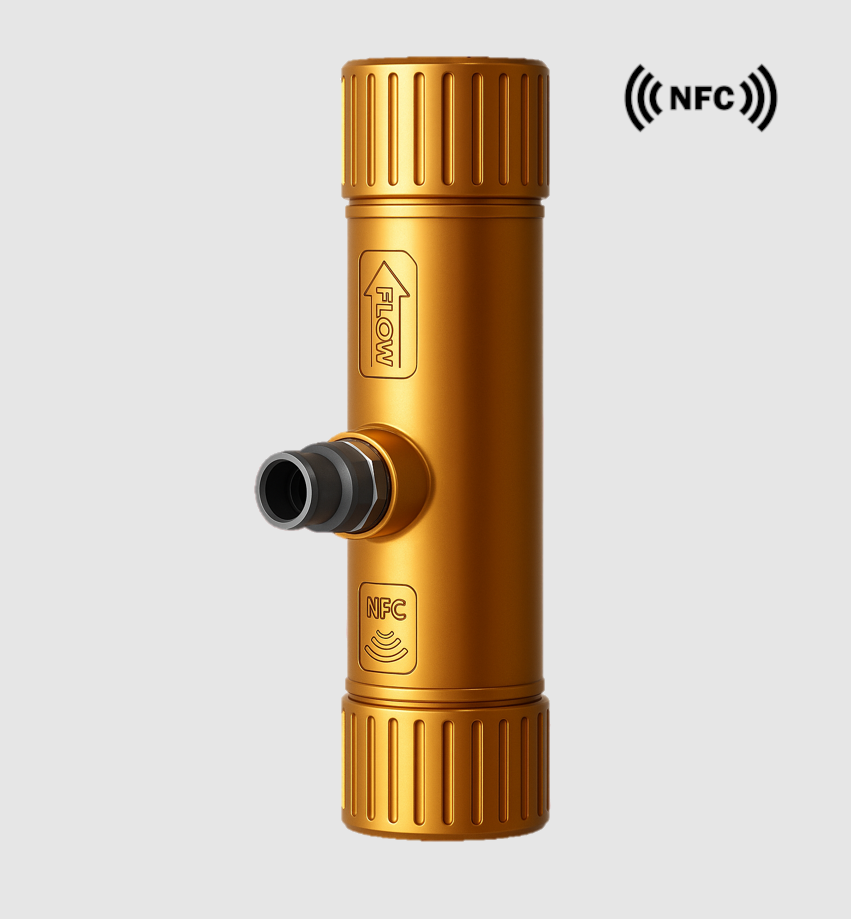

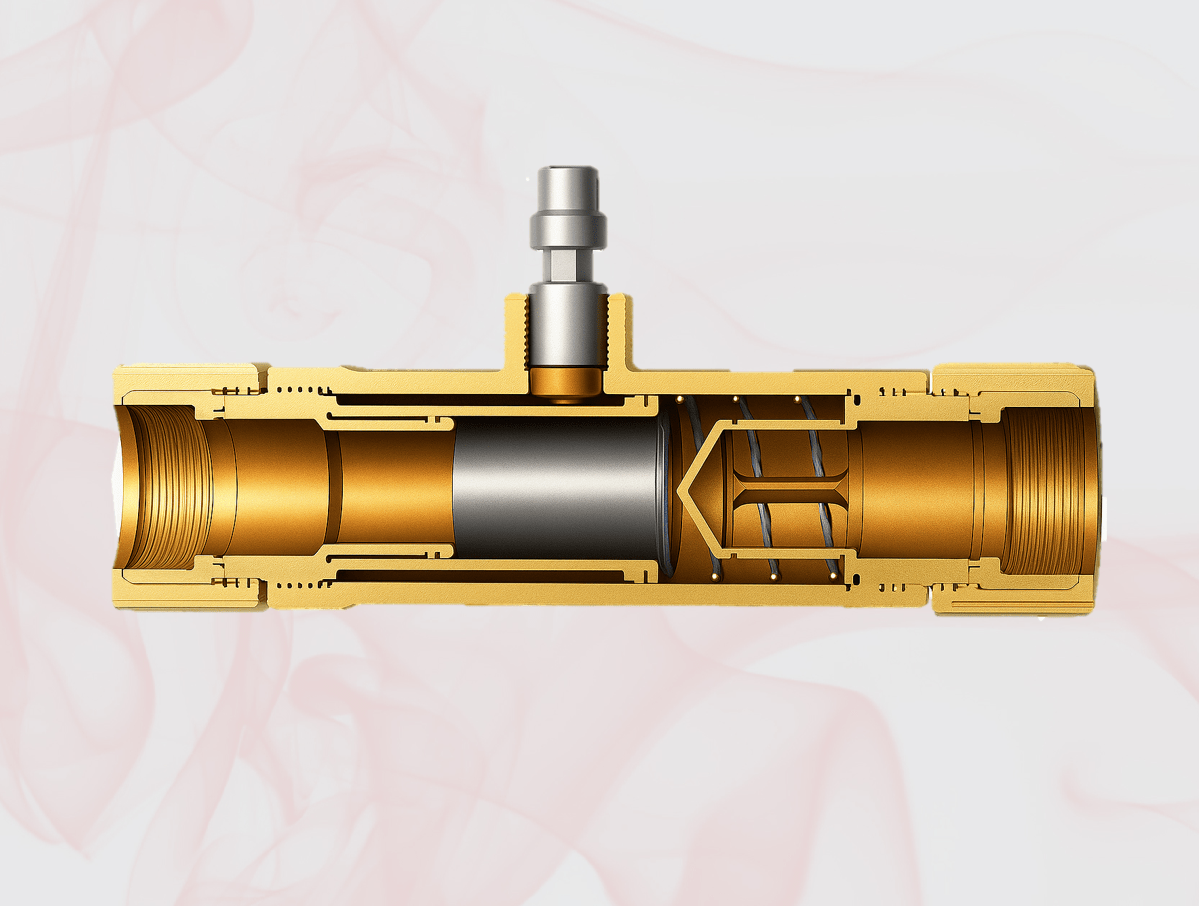

PurgePort Pro™ is a purpose-built inline purge valve with integrated NFC smart chip technology for automated maintenance of Air Sampling Smoke Detection (ASD) pipe networks. Unlike manual ball valve methods, PurgePort Pro™ isolates the detector with a pneumatically actuated, fail-safe check valve, preventing debris or pressure from reaching the unit. It stores and retrieves commissioning and inspection data, including installation details, inspection history, purge records, and unique asset IDs, directly from any IOS/Android device. Easily integrated with automated purge systems like our SureFlow Pro™, PurgePort Pro™ eliminates human error, reduces failure points, and simplifies long-term system management.

Features:

• Purpose-Built Design. Simple, reliable, fail-safe purging of Air Sampling Pipe Networks.
• Automated Operation: Actuates purge pathway without manual or electronic valves.
• Contaminant Isolation: Prevents backflow of purge air or fluids to the ASD detector.

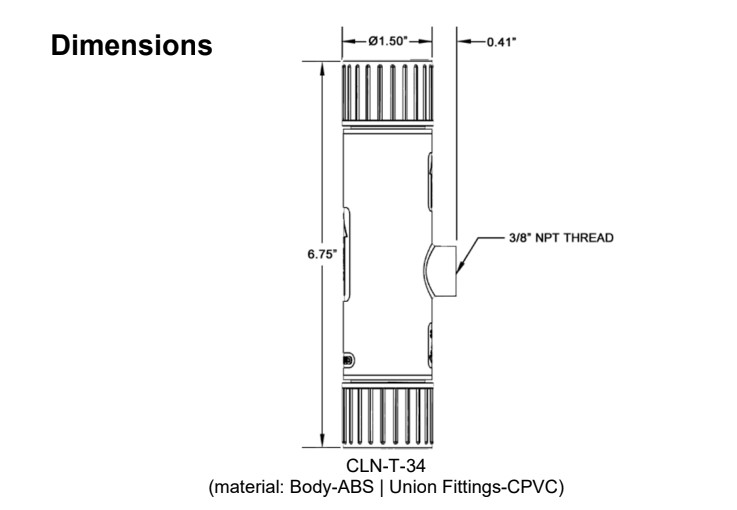

• Unrestricted Flow Pathway: Maintains ¾” ID to match standard ASD pipe networks.
• Smart Chip Enabled: Integrated NFC Smart chip technology for storage and retrieval of commissioning parameters and inspection data.
• Compatible with ASD InspectPro™ App for commissioning and inspection management (IOS/Android)

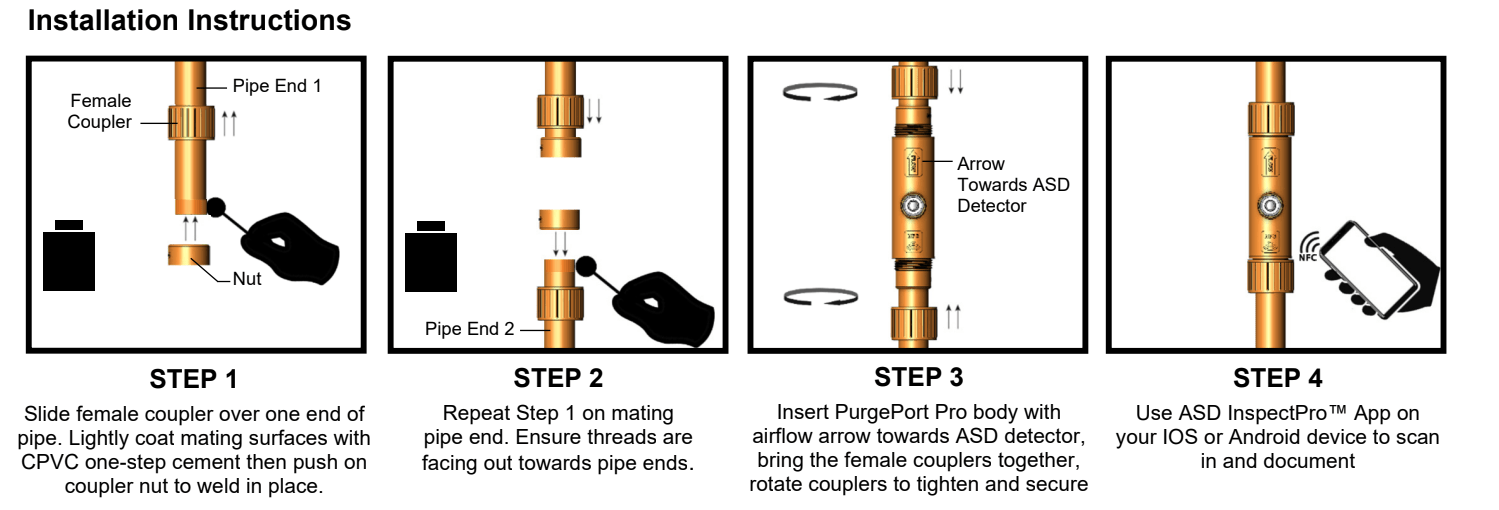

• Reduced Parts: Doubles up as an inline union fitting, facilitating disconnection of pipe from the ASD unit without disrupting pipe installation, detector, and without the need for additional components.

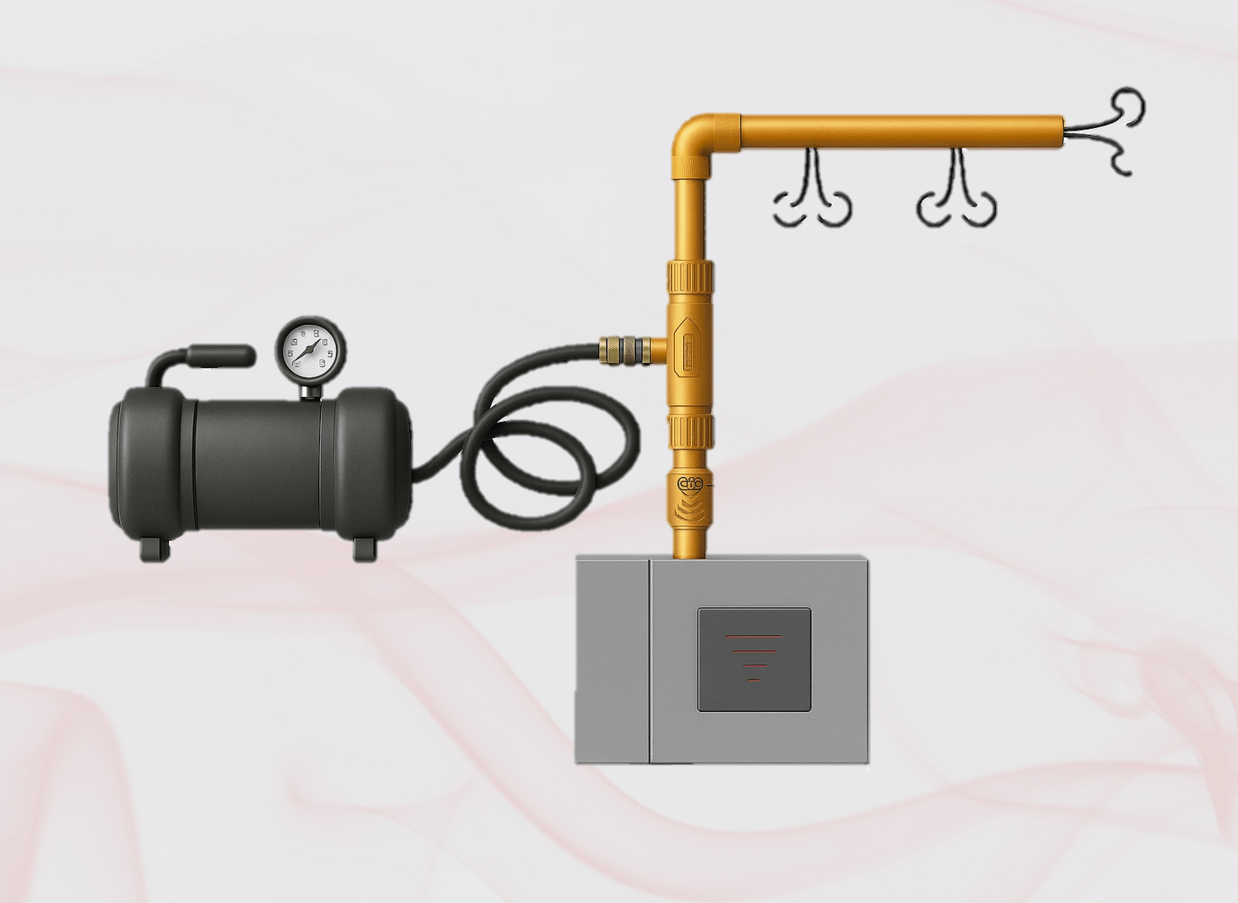

• Automation: Optional SureFlow Pro™ 1-port and 4-port purge controllers for automated purging of pipe networks.
• Purge inlet accepts standard 3/8” NPT fittings. Industrial plug or pneumatic push connect fittings available
